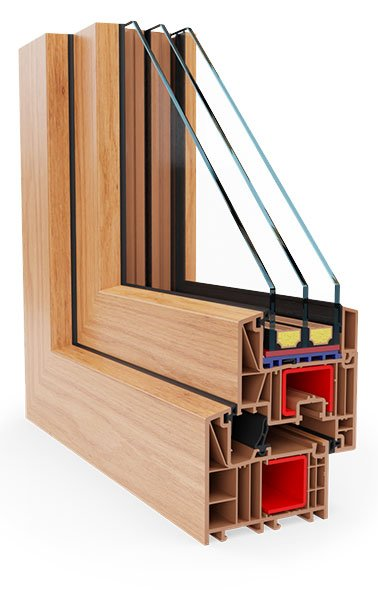

Salamander bluENERGY
Characteristics:
• 6-chamber frame and casement profiles made from the best PVC materials,
• triple glazing with U-value equal to 0,5 W/m2K,
• construction depth of 82mm – ideal for old and new buildings,
• QUALITY OF THE YEAR 2014 award in „Product of the year” category,
• deeply embedded glass units improve thermal insulation; outer chambers effectively improve ventilation and window cooling,
• two compression seals and an additional central seal improve thermal and sound-proofing performances of passive windows,
• outstanding heat transfer coefficient Uw equal to 0,7 W/m2K when using glazing with Ug equal to 0,5 W/m2K,
• additional ribs for strengthening frame and casement profiles,
• Roto NT fittings with RotoSil Nano coating,
• steel reinforcements, 2mm thick,
• gaskets bonded in corners,
• Swisspacer - thermal spacer bar,
• Roto Secustic handles,
• five-year warranty for all passive windows,
* applies to window measuring 1230 mm / 1480 mm.

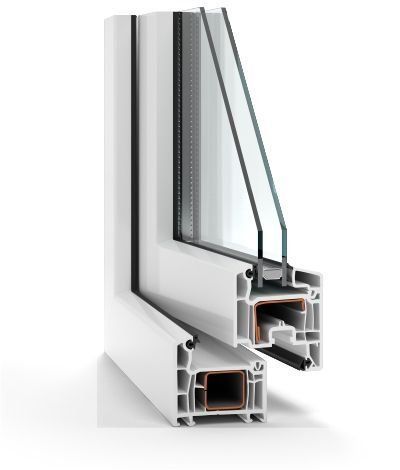

Veka Softline 70
Characteristics:
• 5-chamber profile with 70 mm basic installation depth.
• Insulation values of up to Uw = 0.76 W/(m²K) when using highly insulating triple glazing with Ug 0.4 W/(m²K).
• Classic contours with slightly rounded edges, particularly small visible surfaces and grey seals.
• Particularly low maintenance thanks to homogeneous surfaces and surface-flush glazing beads.
• Optimal stability for long-lasting functionality and value retention.
• Total compatibility with the other VEKA 70 mm systems SWINGLINE and TOPLINE.
• Available as recessed and semi-recessed version.
• Also suitable for the manufacture of parallel slide & tilt doors.

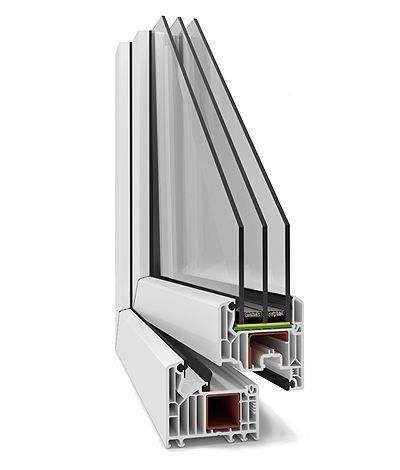

Veka Softline 82 MD
Characteristics:
• 82 mm system with innovative multi-chamber geometry for excellent thermal insulation.
• Insulation values of up Uw = 0.67 W/(m²K) when using highly insulating triple glazing with Ug 0.4 W/(m²K) .
• Glass penetration of 25 mm reduces heat transfer.
• Universally suitable for new constructions and house renovation projects.
• Wall thickness at the highest RAL quality standard ‘Class A’ (DIN EN 12608).
• Three-level seal keeps out noise, cold, damp and draughts.
• Also available as AD system with rebate seal.
• Surface finishing with films and skirtings possible.

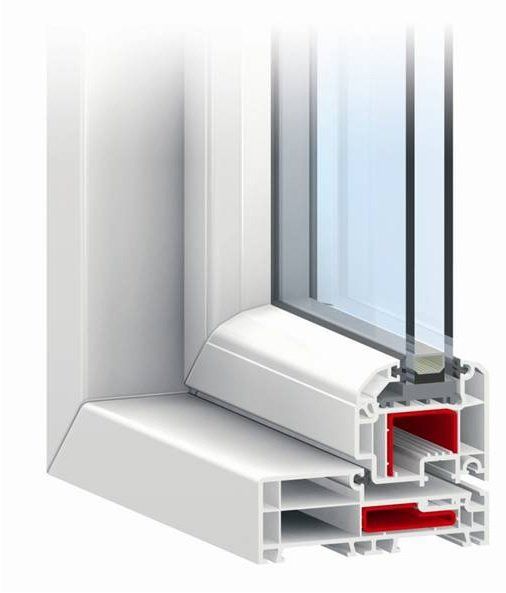

Scandinavian windows PRIMO 4000
Characteristics:
• Denmark, Norway, Sweden for the market to open is in the box shutter system.
• The external profile wall thickness of 3 mm (Class A);
• 120 mm frame width, 82 mm in width hinged partly;
• Opening types: Top Swing and showcase.
• Sealing: two intermediate: silicone core and windward;
• Glazing: 28 mm or 48 mm glass windows;
• Maximum opening windows Dimensions: 1670×1580;
• Furniture: Spilka (country of origin – Norway), Mila (country of origin – Denmark);
• Profile: PRIMO 4000 (origin – Denmark);
• The possibility of routing unplastered slot (10 mm) the product perimeter from the inside.

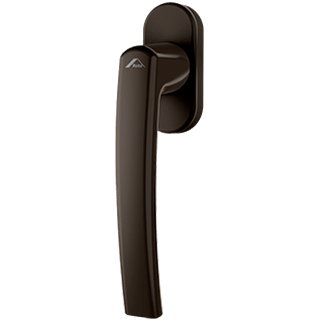

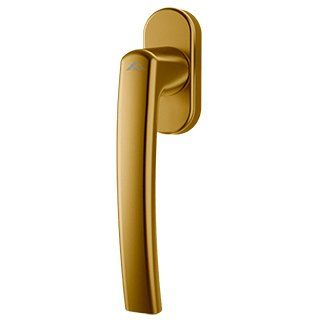

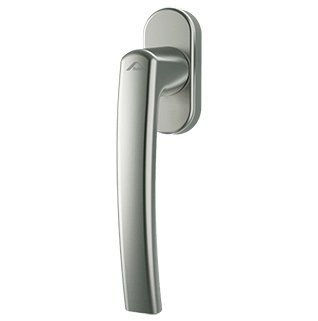

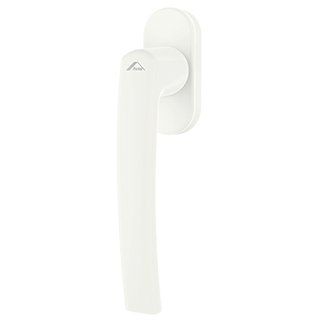

Handle selection
Dividers
Divider colors
Popular frame colors
Additional frame colors
